Serena® Controls

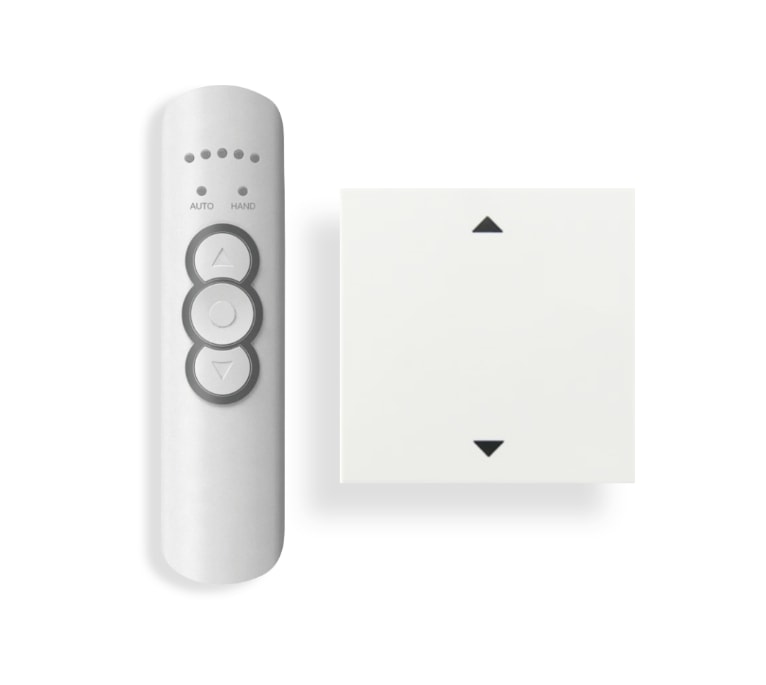

Most common operation for our roller blinds is either by a remote or by a wall switch. A wall switch is easy in operation and a remote is handy in use. Serena® remotes & Serena® Wall switches are beautifully designed and looks attractive. A wall switch can either by wired to the motor or can be a wireless. A roller blind can be operated individually or in groups with our 5 and 10 channel remotes.

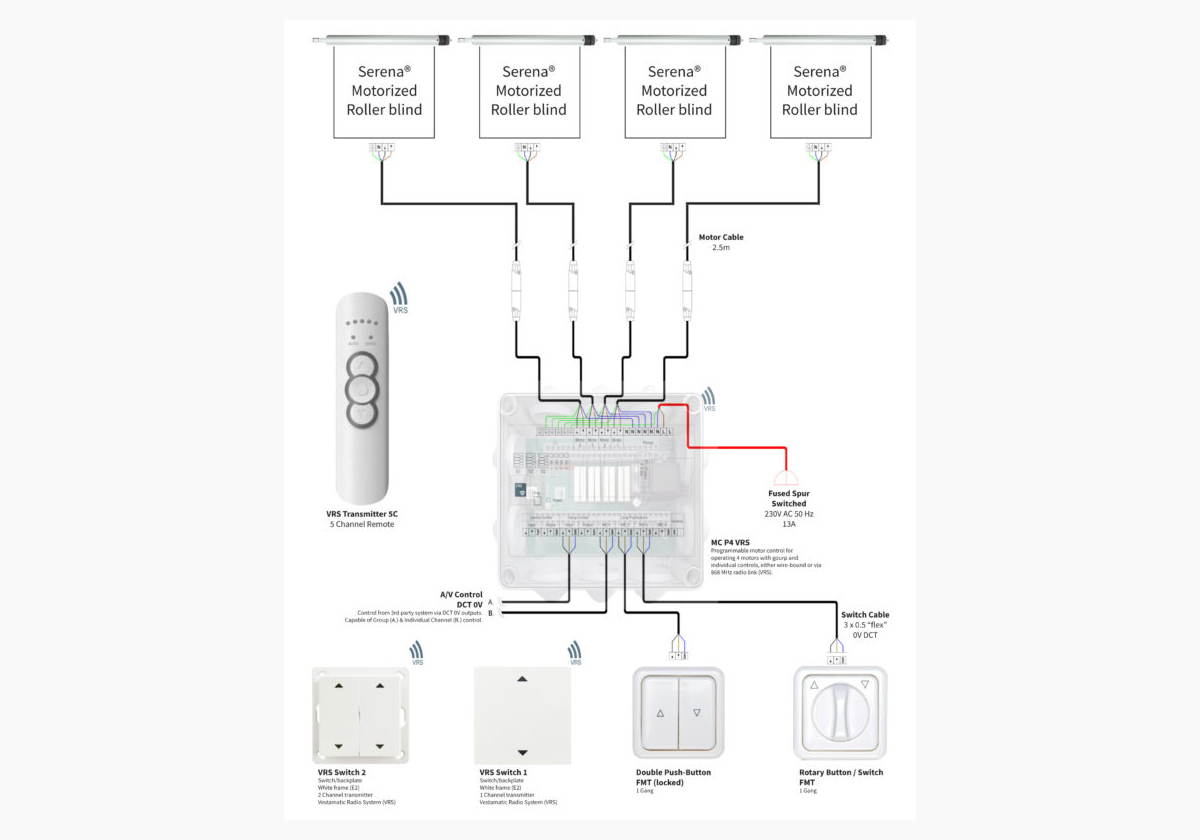

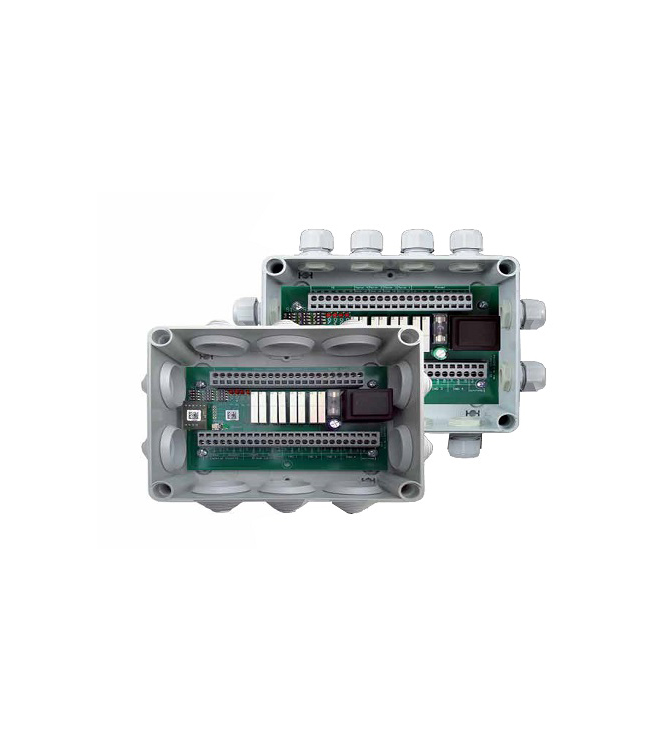

Programmable motor controls for operating 4 sunshade devices with group and individual controls, either wire-bound or via 868 MHz radio link.

• Microprocessor-powered motor controller for four sunshade controls
• Standard 3-wire central input
• Direct connection available for four 230VAC motors
• Connection available for group button
• Connection available for four individual buttons
• Separate connection terminals for mains supply and central transmission
• 10 different operating modes can be set, incl. inching mode and
• Intelligent decentralised operation
• Motor run time/tilting time can be individually set
• Control via VRS radio remote control or VRS wall-mounted radio transmitter (MC P4 VRS)

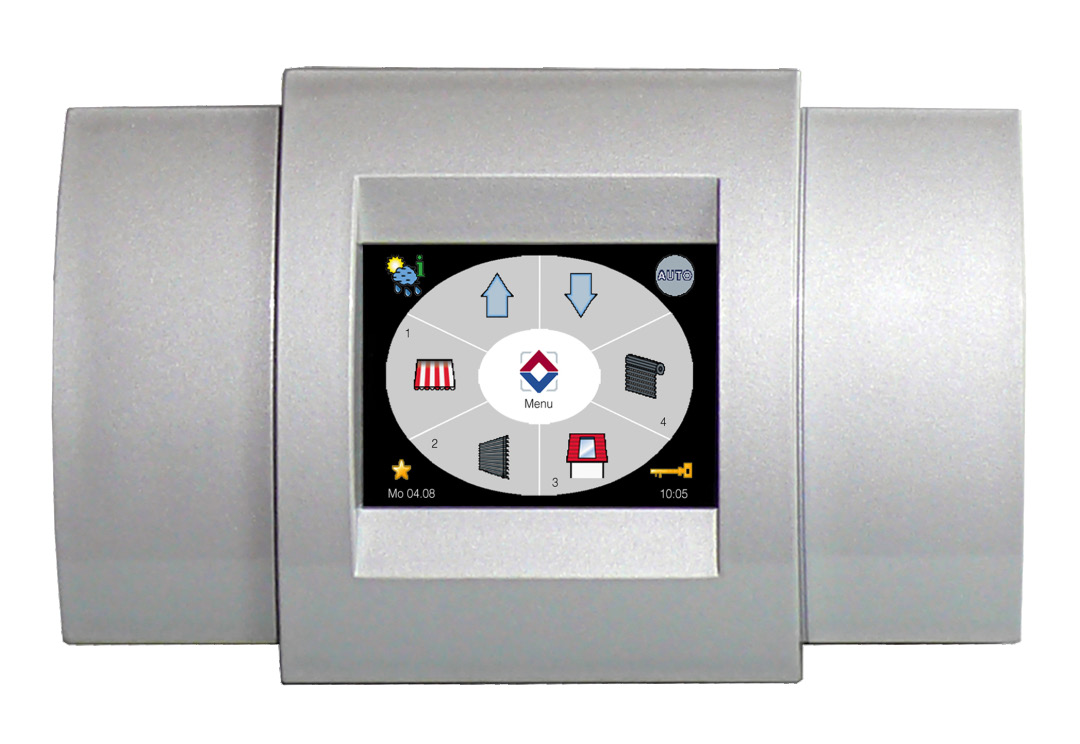

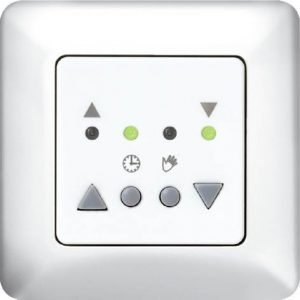

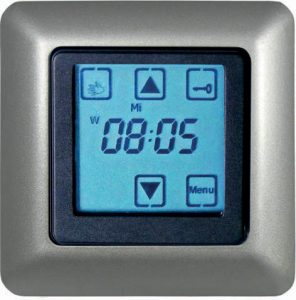

The blind controls WISO Control and WISO Quattro always move one single or a group of blinds automatically ormanually. One motor can be connected directly; alternatively motor controls can be connected and allow group settings for the connected blinds (and local according to the chosen motor control solution).

All products can be combined with two lux and one wind sensor to realize the automatic drive with equivalent setting. A rain, frost or temperature sensor can only be used with WISO Quattro.

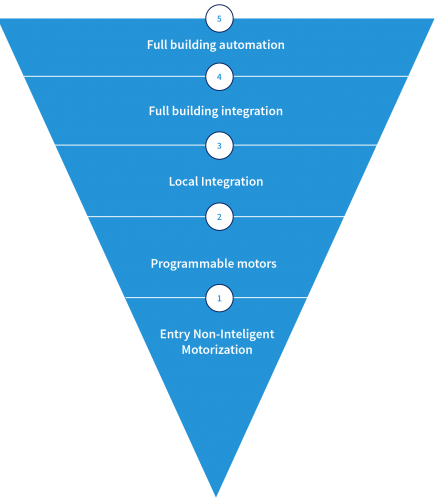

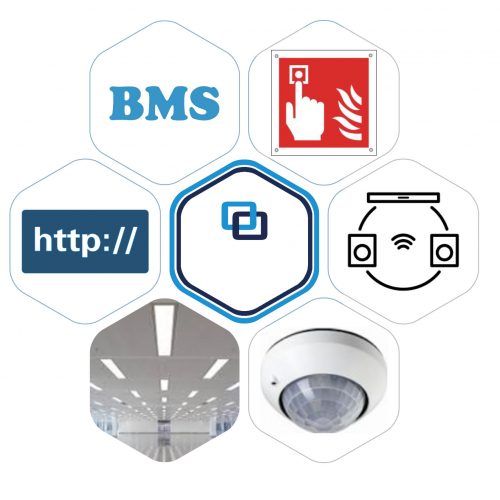

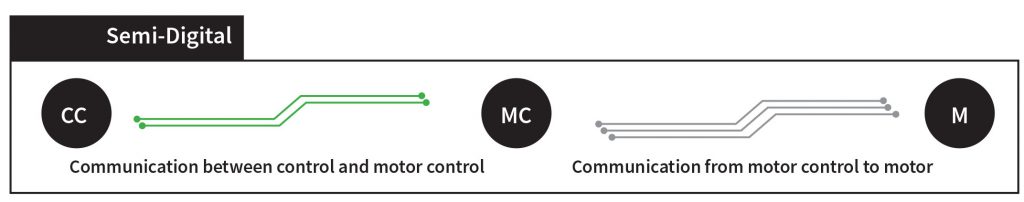

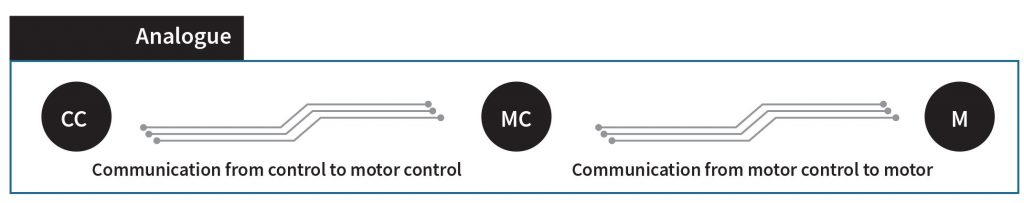

When designing an automated solar protection system, you need to consider the reason of why it needs to be motorized. The simplest reason is comfort and the installation is just intended to be easy to control and is the most cost effective. However due to the simple control there is also limitations in control options and integration with other systems like BMS. If you main goal is the highest level of sustainability and smart control of your building, you need a fully automated system with an industry bus control, which will have the option of full solar control of the motorization controlling the blinds to correct position when needed and also allow correct amount of natural daylight at all times of the day.
