Solange® 200 Tensioned Blind System
Tandem Roller Tube Single Mechanism Tensioned Blind System
Our Solange® 200 specialty blinds are designed around spacious glazing that requires large and powerful systems. Covering spacious buildings with shading solutions require a high-performance blind, especially when it comes to cover large sizes or unusual shapes and applications. What makes this shading system unique is a combination of factors such discrete guides and the concealed torsion spring and motor within the fabric barrel.
These features allow the design of very wide blinds and unusual shapes or running directions, which makes Solange® 200 the ideal solution for large horizontal, vertical and sloping glazing in airports and huge spaces.
Solange® 200 Datasheet
Technical Data

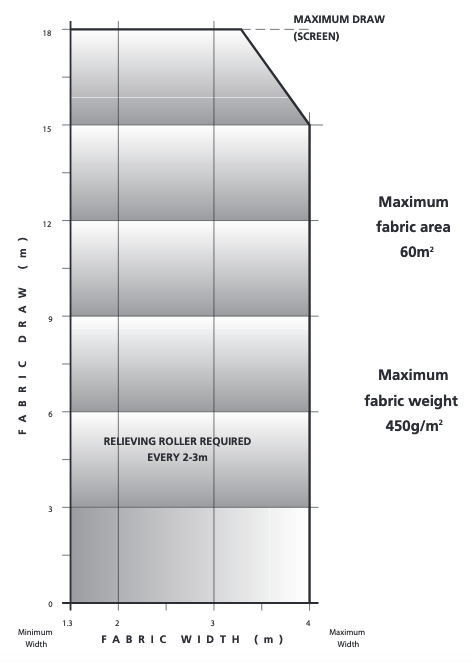

| System Dimensions: | |
|---|---|
| Max. Recommended Width | 4.0m |
| Maximum Draw | 18.0m |
| Maximum Fabric Area | 60.0m² |
| Minimum Width (Standard WT motor) | 1300mm |
| Minimum Width (Radio RTS motor) | 1300mm |
| System Weights and Structural Loading | |
| Basic System Weight + Per Meter Width | 32 kg + 11kg/m |
| Typical Fix Load | 72 kg per bracket |
| Load Created by Fabric Tension | 25Kg max. (both per anchor point). |
| Motor | |
| Motor Type | Wired or Radio Frequency (RF) |
| Voltage | 230 V AC 50 Hz |
| Motor Tourque | 35.0nm |
| Motor Speed | 17 rpm |
| Temperature Range | 0-60° |
| Limit Switch Unit (standard): | Progressive |
Solange® 200 Tensioned Blind System
Specifications

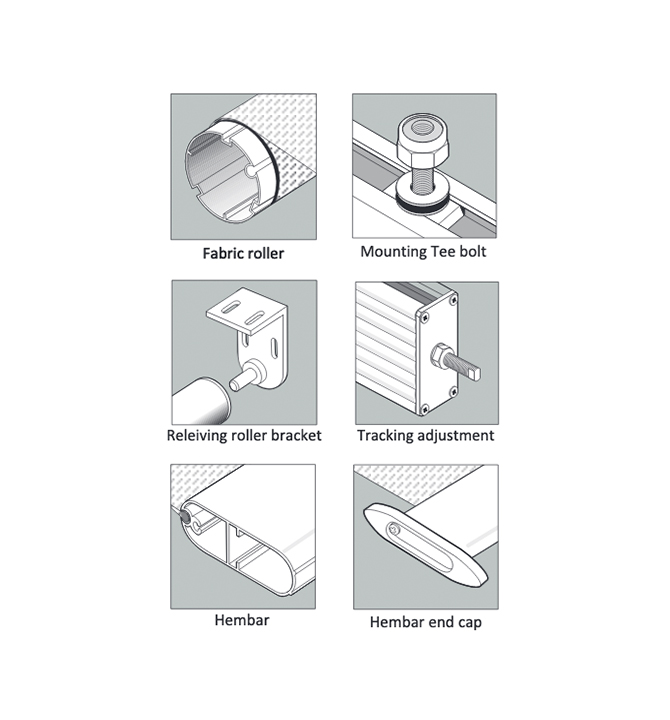

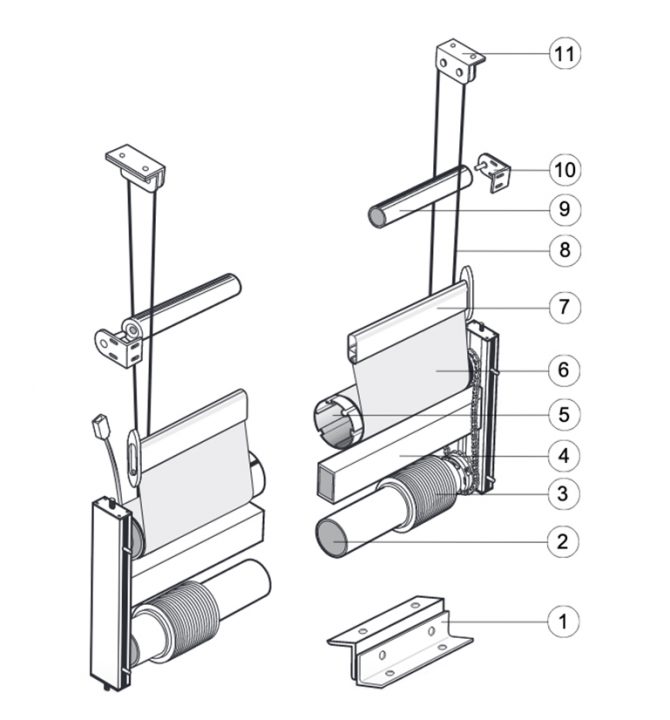

Components
- 127Ømm extruded aluminum fabric and motor assembly tube.
- steel roller tube assembly to house-in the spring tension compensation cassette assembly to maintain constant fabric tension.
- cable drums on the steel roller assembly for the continous-nylon coated galvanized steel tension cable.
Finishes
- Aluminium components finished in the standard polyester powder finish, 30% gloss
- fasteners of stainless steel and other steel parts galvanized against corrosion.
System Installation
The mounting brackets shown are examples only and are not supplied as standard. For alternative mounting bracket designs please contact our sales department.
