Solange® 300 Internal Blind System
Large Internal Vertical Drop Blind System
Basically engineered for huge buildings such as airports, swimming pools and shopping malls, the Solange® 300 is a vertical drop blind designed with a single barrel system. The Solange® 300 is translucent when deployed to connect the indoor to the outdoors and fully retractable to reveal the exciting view when light control is not required.
This system is designed to be retrofit for their outstanding performance in spacious buildings. Equipped with a powerful motor within a 127mm fabric barrel, this shading system is perfect for covering up to 6m width with a single roller system.
Solange® 300 Datasheet

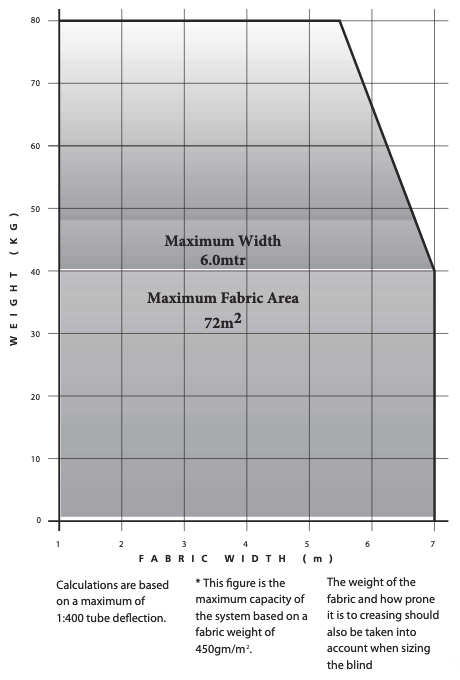

Technical Data
| System dimensions: | |
|---|---|
| Maximum width | 6.0m |
| Maximum height | 12.0m |
| Maximum fabric area | 72.0m² |
| Minimum width (Standard WT Motor) | 970mm |
| System weight | |
| Minimum width (Standard RTS Motor) | 9 kg + 3kg/m |
| Motor | |
| Voltage | 230 V AC 50 Hz |
| Limit Switch Unit (Standard) | Progressive |
| Motor Torque | 35.0 to 55.0 Nm |
| Motor Speed | 18 rpm |
| Temperature Range | 0-60° |
Solange® 300 Internal Blind System
Specifications

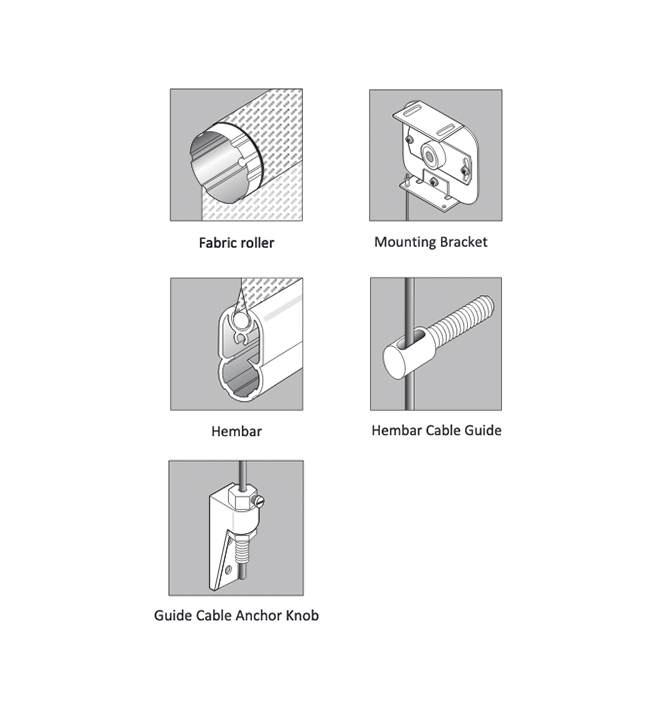

Components
- 127Ømm extruded aluminum fabric and motor assembly tube.
- stainless steel nylon coated guide cables.
- A continuous nylon coated tension cable to deploy and retract the blind by means of two 6.5m capacity cable drums, one on either end of the fabric roller
Finishes
- Aluminium components finished in the standard polyester powder finish, 30%.
- Aluminium components finished in the standard polyester powder finish, 30% gloss.

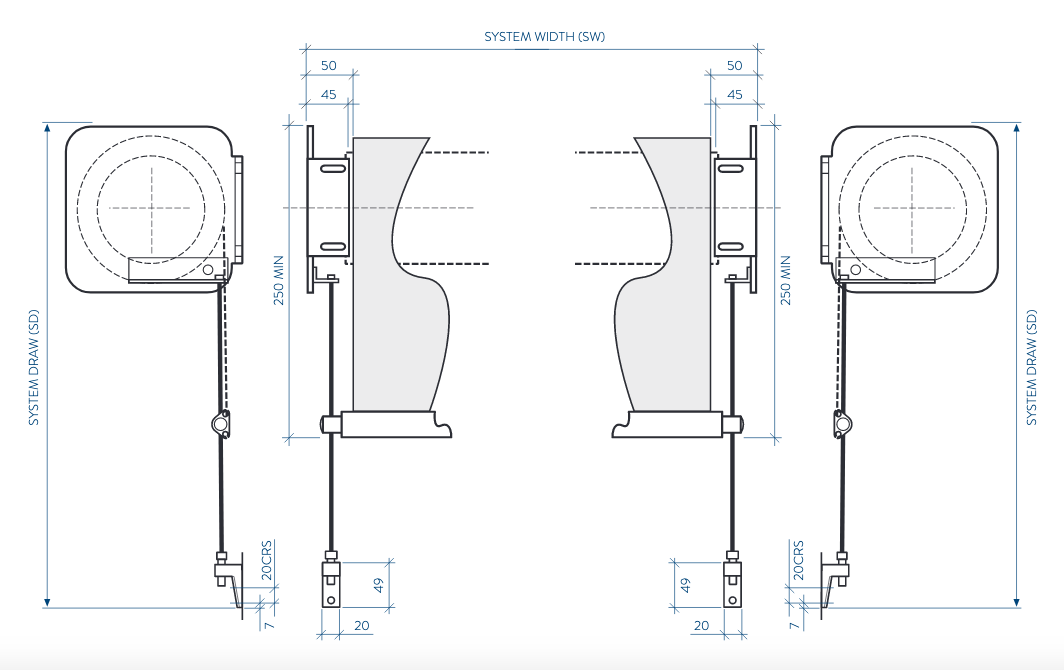

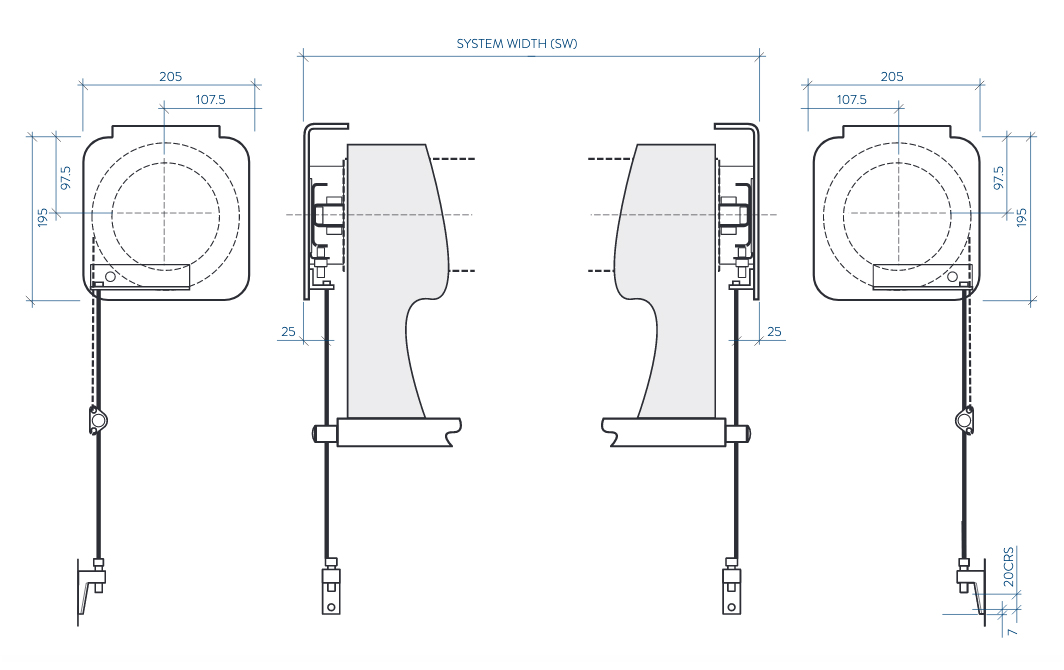

System Installation
Recess | CeilingFixing
Wall | FaceFixing
