Sidelock Fabric Retention Mechanism System
Solange® 600 Tensioned Blind System

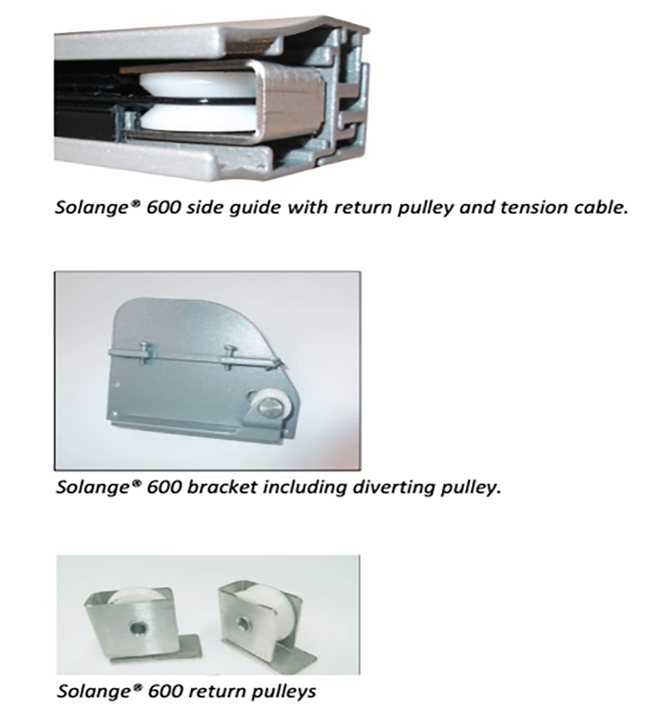

The Solange® 600 is a rectangular tensioned blind system designed for large-scale projects to complement rooflights and sloped glazing across the residential and commercial buildings. Engineered with a side lock mechanism that stops the fabric from blowing out of its guides, this system eliminates light gaps and offers total reliability and maximum light control.
This automated shading system has been initially designed for complex buildings such as airports and commercial centres but recently, we start endorsing it to cover glazing in the residential sector.
Solange® 600 Tensioned Blind System
Technical Data
| System Dimensions: | |
|---|---|
| Maximum Width | 3.0m |
| Maximum Draw | 3.0m |
| Maximum fabric area | 9.0m² |
| Minimum Width (Standard WT Motor) | 650mm |
| Minimum width (Radio RTS Motor) | 650mm |
| System Weight | |
| 3x3m, external, blackout fabric | 34 KG |
| 3x3m, internal, screen fabric | 32 KG |
| Motor | |
| Motor Type | Wired or Radio Frequency (RF) |
| Voltage | 230 V AC 50 Hz |
| Limit Switch Unit (Standard) | Progressive |
| Motor Torque | 9.0 Nm |
| Motor Speed | 12 rpm |
| Temperature Range | 0-60° |
System Installation

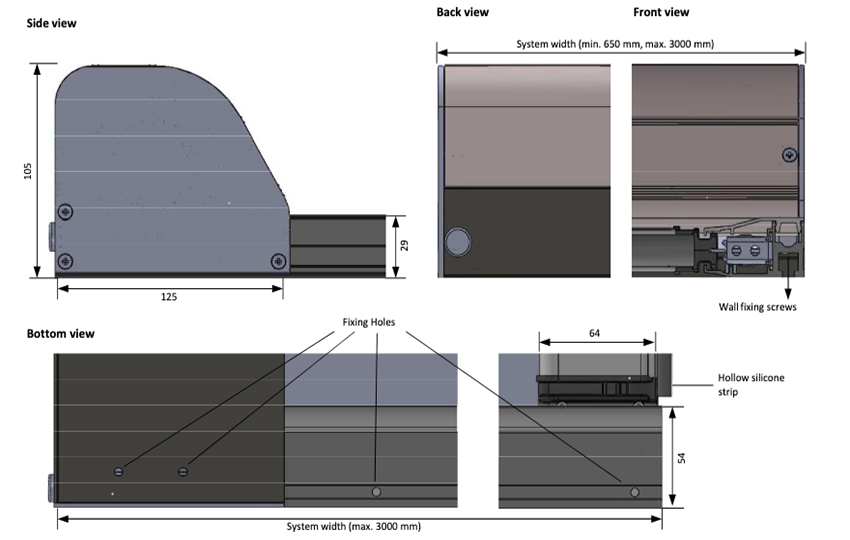

Front | Face fixing

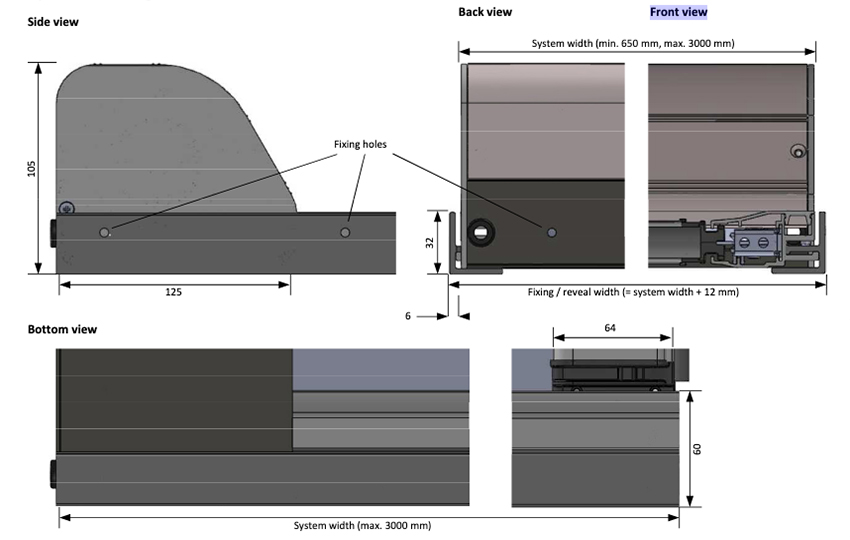

Side | Reveal fixing
