Serena® motorized roller
blind system with zipper channel.
This motorized roller blind is engineered for room darkening purposes. It features a zipper channel that stabilizes the roller blind and is built in auto stop mechanism for upper and lower limit setting.
For easy installation, operation and maintenance, all motorized blinds we provide are electrically operated, and some can include specialized battery-powered system. If required. Euro Systems motorized shades with Serena® series consist of:
- Serena® 100
- Serena® 170
Key Features
Motorized roller system
- Heavy duty VRS 230 VAC or SMI 230 VAC/24 VDC motor installed within the roller blind tube
- Built in auto stop mechanism for upper and lower limit setting
- Robust anti-deflection duty 47 mm diameter tube
- Aesthetic end caps
- Aesthetic aluminum fascia available as option
- Face, top or wall fixing options

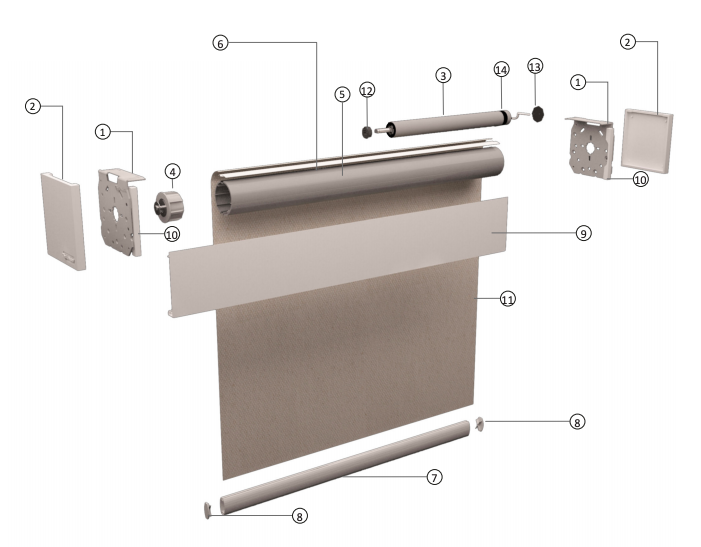

2. Bracket cover
3. Motor
4. End plug
5. Tube
6. Mounting Spline
8. End cap hem bar
9. Optical fascia
10. Fascia support
11. Fabric
12. Shaft Adapter
14. Motor plate
Key Features

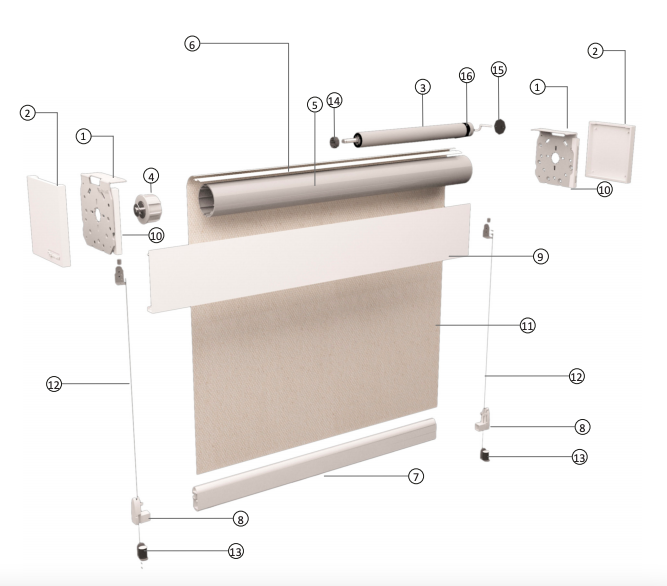

Motorized roller system with guide wire
- Heavy duty VRS 230 VAC or SMI 230 VAC/24 VDC motor installed within the roller blind tube
- The guide wire stabilizes the roller blind
- Built in auto stop mechanism for upper and lower limit setting
- Robust anti-deflection duty 47 mm diameter tube
- Aesthetic end caps
- Aesthetic aluminum fascia available as option
- Face, top or wall fixing options

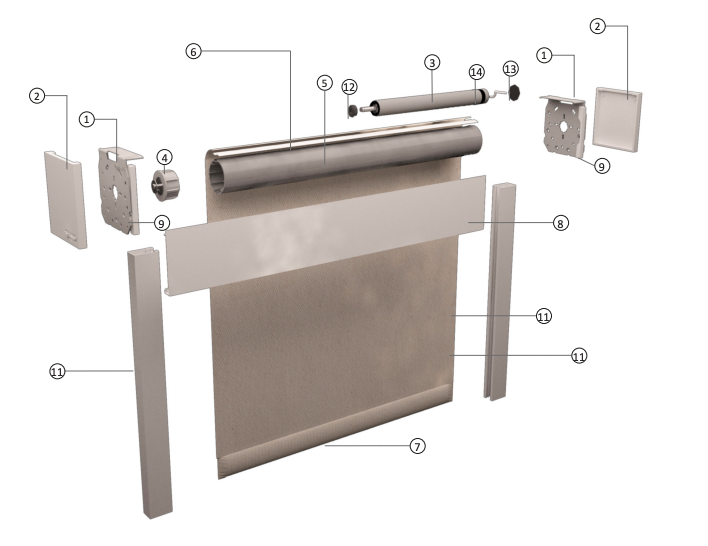

2. Bracket cover
3. Motor
4. End plug
5. Tube
6. Mounting Spline
8. End cap hem bar
9. Optical fascia
10. Fascia support
11. Fabric
12. Guide wire
14. Shaft adapter
15. Crown wheel
16. Motor Plate
Key Features

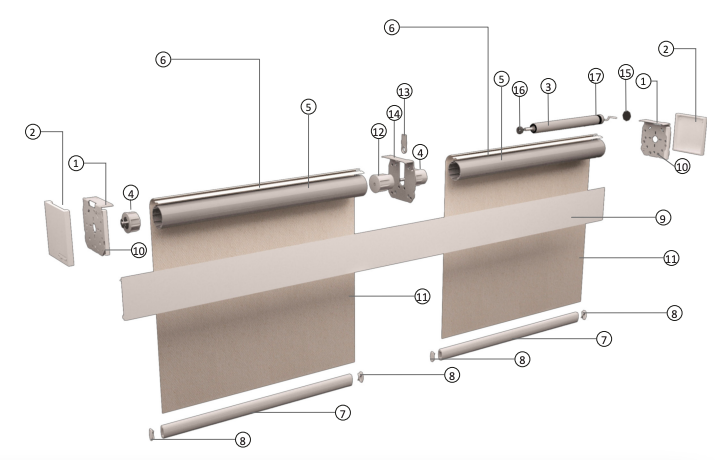

Multi band motorized roller system
- Heavy duty VRS 230 VAC or SMI 230 VAC/24 VDC motor installed within the roller blind tube
- Up to 20 m2 blind with a single motor system
- Built in auto stop mechanism for upper and lower limit setting
- Robust anti-deflection duty 47 mm diameter tube
- Aesthetic end caps
- Aesthetic aluminum fascia available as option
- Face, top or wall fixing options
2. Bracket end cap
3. Bracket cover
4. Motor
5. End plug
6. Tube
8. Hem bar
9. End cap hem bar
10. Optical fascia
11. Fascia support
12. Fabric
14. Zipper
15. Shaft adapter
16. Crown wheel
17. Motor plate
Key Features

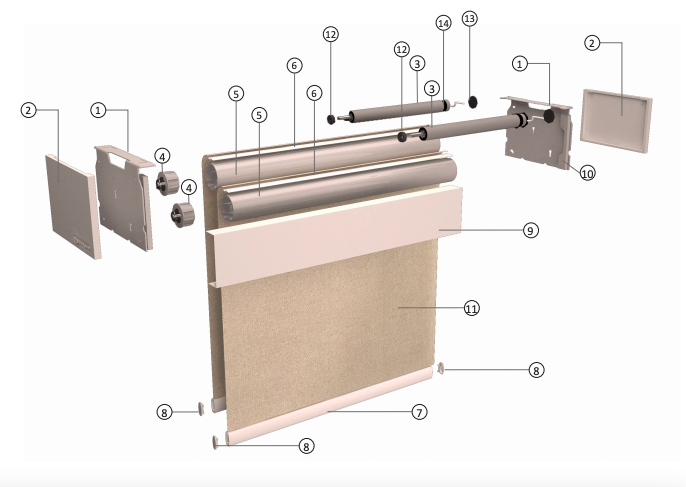

Double blind motorized roller system
- Heavy duty VRS 230 VAC or SMI 230 VAC/24 VDC motor installed within the roller blind tube
- Double blind with single brackets to install both sunscreen & blackout blinds in a single window.
- Up to 20 m2 blind with a single motor system
- Built in auto stop mechanism for upper and lower limit setting
- Robust anti-deflection duty 47 mm diameter tube
- Aesthetic end caps
- Aesthetic aluminum fascia available as option
- Face, top or wall fixing options
2. Bracket end cap
3. Bracket cover
4. Motor
5. End plug
6. Tube
8. Hem bar
9. End cap hem bar
10. Optical fascia
11. Fascia support
12. Fabric
14. Zipper
15. Shaft adapter
16. Crown wheel
17. Motor plate
Key Features

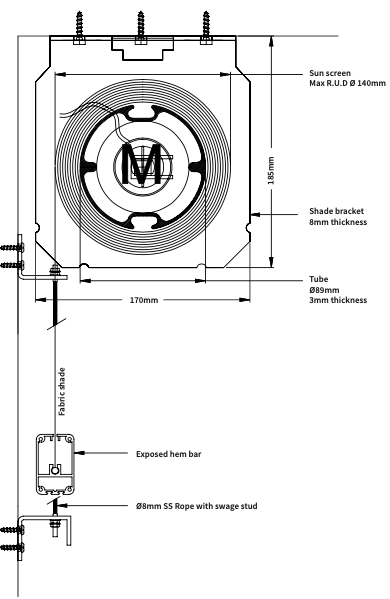

Motorized Monumental Roller Blind With Guide Wire
Operation: Roller blind drive motor with torque range 50 -650 Nm as per project and blind requirement.
Bracket: The drive and idle-end assembly along with the center support systems are attached to an 8 mm steel universal mounting bracket 185 mm x 170 mm.
Edge clearances: Drive-end: 31 mm, idle-end: 18 mm
Bracket mounting: Ceiling, wall or recess mounting.
System configuration: Precision winding shaft of extruded aluminum(T6), Ø90 mm and 4 mm thickness. Exposed hem bar (47 mm x 31 mm) powder coated white (RAL 9016).
Guide wire: The hanging fabric is guided parallel to the window frame between two steel cords – also when the window is tilted. Slope angel max. 15°. Eyes on the closing profile of the hanging enclose the cord and guarantee safe guidance. Material (guide wire): Stainless steel Ø 8.0 mm.
Maximum dimensions: Depending on fabric thickness, max R.U.D is 140 mm.
2. Bracket end cap
3. Bracket cover
4. Motor
5. End plug
6. Tube
8. Hem bar
9. End cap hem bar
10. Optical fascia
11. Fascia support
12. Fabric
14. Zipper
15. Shaft adapter
16. Crown wheel
17. Motor plate
Key Features
Motorized roller system with guide wire
- Heavy duty VRS 230 VAC or SMI 230 VAC / 24 VDC motor installed within the roller blind tube
- Up to 20 m² blind with a single motor system
- The zipper channel stabilizes the roller blind
- Built in auto stop mechanism for the upper and lower limit setting
- Robust anti-deflection duty 47 mm diameter tube
- Aesthetic end caps
- Aesthetic aluminum fascia available as option
- Face, Top or wall fixing options

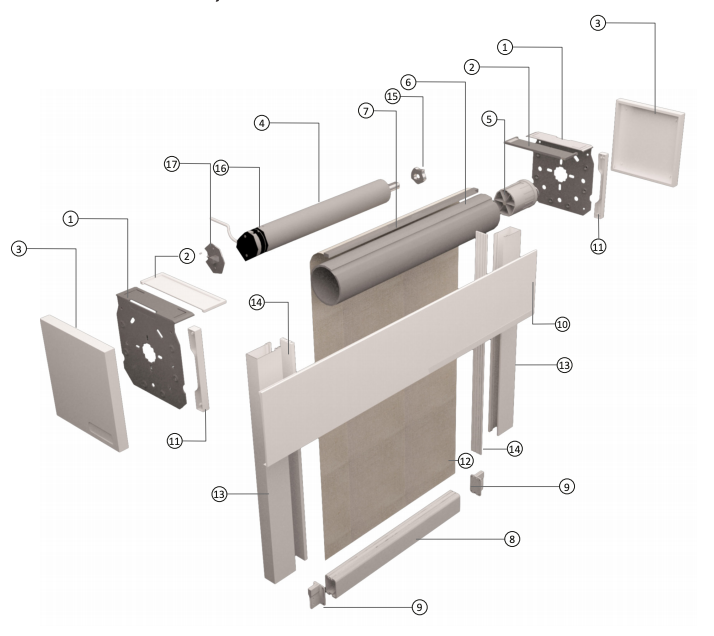

2. Bracket end cap
3. Bracket cover
4. Motor
5. End plug
6. Tube
8. Hem bar
9. End cap hem bar
10. Optical fascia
11. Fascia support
12. Fabric
14. Zipper
15. Shaft adapter
16. Crown wheel
17. Motor plate
Key Features
Motorized roller system with guide wire
- Heavy duty VRS 230 VAC or SMI 230 VAC / 24 VDC motor installed within the roller blind tube
- Up to 20 m² blind with a single motor system
- The zipper channel stabilizes the roller blind/li>
- Built in auto stop mechanism for the upper and lower limit setting
- Robust anti-deflection duty 47 mm diameter tube
- Aesthetic end caps
- Aesthetic aluminum fascia available as option
- Face, top or wall fixing options
2. Bracket end cap
3. Bracket cover
4. Motor
5. End plug
6. Tube
8. Hem bar
9. End cap hem bar
10. Optical fascia
11. Fascia support
12. Fabric
14. Zipper
15. Shaft adapter
16. Crown wheel
17. Motor plate
Key Features
Cover and intermediate frames
Our Roller blinds come equipped with our standard Salire® Manual System
Our Roller Blinds are easily upgradable to Serena® Motorization System and be controlled with a variety of different control options.
Roller Blinds by Euro Systems® can also be integrated with most automation systems except non-proprietary systems
Sustainable
fabric collection
Automated window treatment options for solar tracking compliant with WELL standards
LED lighting in
pockets
Combination of privacy and
light control
Our Roller Blinds are safe in a child friendly environment.
Serena Edge Clearance
System Parameters: Fabric: Up to 0.7 mm in thicknessFabric Weight: Up to 600 g/mBottom bar: Up to 700 g/m
Edge clearance for a single blind
Edge clearance for 2 banded blinds
Edge clearance for 3 banded blinds
Accessories
Cover and intermediate frames
GIRA Standard 55 white
GIRA Standard 55- Fla White
GIRA E2- Flat White
GIRA E2- White Polished
Busch Jaeger Reflex SI
Berker B3
JUNG CD 500
GIRA E2- Flat Anthracite
