Salire® Manual Systems

Play Video

Salire® manual roller
blinds systems.

Our Salire® 100 system is built in auto stop mechanism for upper and lower limit setting and can be customized with aesthetic end caps and decorative aluminum fascia available as an option. Face, top or wall fixing options are available: our Salire® blinds can be fitted to a wall or window frame (Face fix) or to the top of a window recess (Top fix). The system has a robust anti-deflection 47 mm diameter tube. When the bottom bar is exposed, an additional weightening by steel profile is possible.

Key Features

Manual chain roller system

  • Stainless Steel Bracket – Made in Germany
  • Powerful in a slim 3”x3” footprint
  • Smooth and effortless operation
  • Durable with lifetime warranty
  • Easy installation with built-in 1/4” levelling adjustment
  • Minimal edge clearance, less than 3/4” light gap
  • Guide Wire, Side Channels and Fascia accessories
  • Smooth brake system for smaller shades
  • Strong brake system for larger shades. Can cover up to 10’x10’ opening
  • Universal Mounting: Wall and Ceiling

Key Features

Manual chain roller system

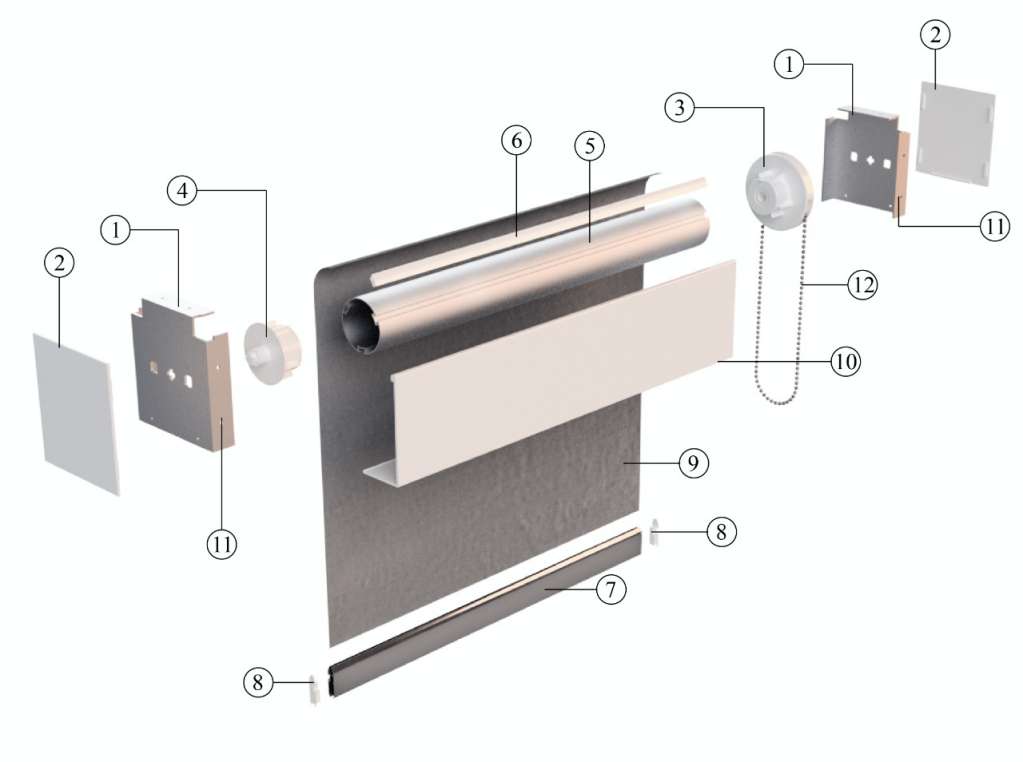

Our Salire® 45 roller blind system is manually operated with a chain. Its slide-lock combines heavier holding weights with antifray features that ensure enhanced blind performance. Its Improved chain location allows for quick and easy on-site adjustment while its locking plug inside clutch ensures continued performance of larger shades.
This roller system is engineered with a specific grooved 5mm aluminum tubing. The selected fabrics are held into the tube with locking tape. Made of glass filled nylon 6, the Salire® 45 side-control units include acetal sprockets, sprockets guard and locking springs. At the opposite end to the control unit, we place a sprung plunger mechanism. The brackets are made of mild steel, acetate, or aluminum to be used for top or face fixing.
Our Salire® 45 is designed with improved chain location for quick and easy on-site adjustment. The locking plug inside clutch ensures continued performance of larger shades.

Key Features

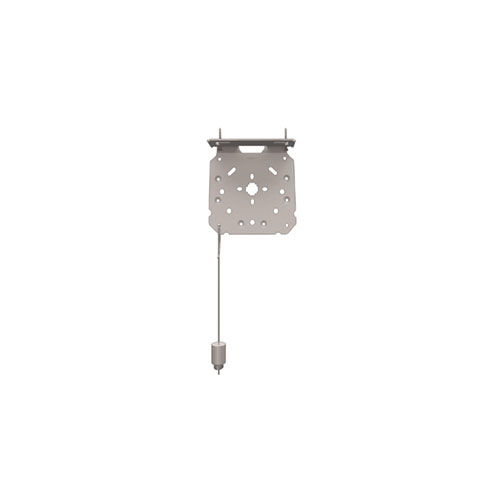

Roller system with guide wire

  • 4:1 ratio chain mechanism for easy operation on large blinds
  • The guide wire will stabilize the roller blind
  • Built in auto stop mechanism for upper and lower limit setting
  • Robust anti-deflection 47 mm diameter tube
  • Aesthetic end caps
  • Aesthetic aluminum fascia available as option
  • Face, top or wall fixing options
  • Additional weightening by steel profile is possible (Only with exposed bottom bar)

Key Features

Roller system with guide wire

  • 4:1 ratio chain mechanism for easy operation on large blind sizes
  • The zipper channel/side guide stabilizes the roller blind
  • Built in auto stop mechanism for upper and lower limit setting
  • Robust anti-deflection 47 mm diameter tube
  • Aesthetic end caps
  • Aesthetic aluminum fascia available as option
  • Face, top or wall fixing options
  • Additional weightening by steel profile is possible (Only with exposed bottom bar)

Key Features

Multi band roller system

  • 4:1 ratio chain mechanism for easy operation on large blinds
  • Up to 9 m2 multi band operation with a single mechanism (max fabrics weight 8 kg)
  • Built in auto stop mechanism for upper and lower limit setting
  • Robust anti-deflection 47 mm diameter tube
  • Aesthetic end caps
  • Aesthetic aluminum fascia available as option
  • Face, top or wall fixing options
  • Additional weightening by steel profile is possible (Only with exposed bottom bar)

Key Features

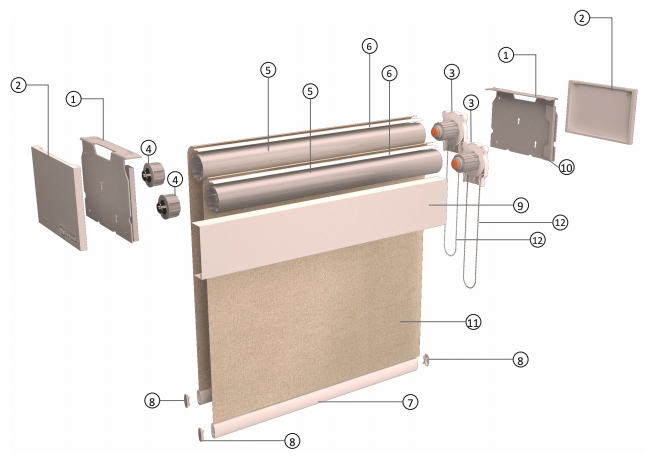

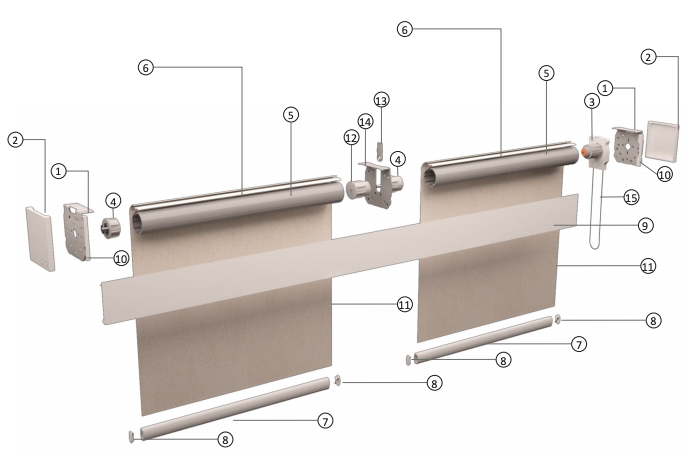

Double blind roller system

  • 4:1 ratio chain mechanism for easy operation on large blinds
  • Double blind with single bracket system designed to install both sunscreen & blackout blinds
  • Built in auto stop mechanism for upper and lower limit setting
  • Robust anti-deflection 47 mm diameter tube
  • Aesthetic end caps
  • Aesthetic aluminum fascia available as option
  • Face, top or wall fixing options
  • Additional weightening by steel profile is possible (Only with exposed bottom bar)

Key Features

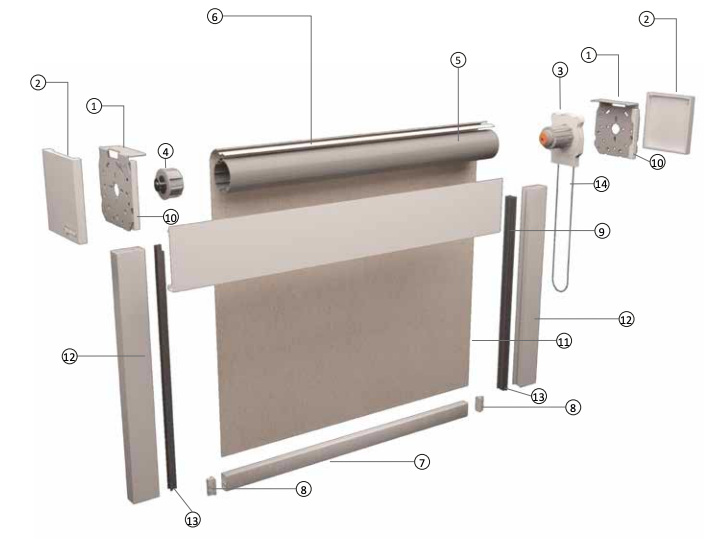

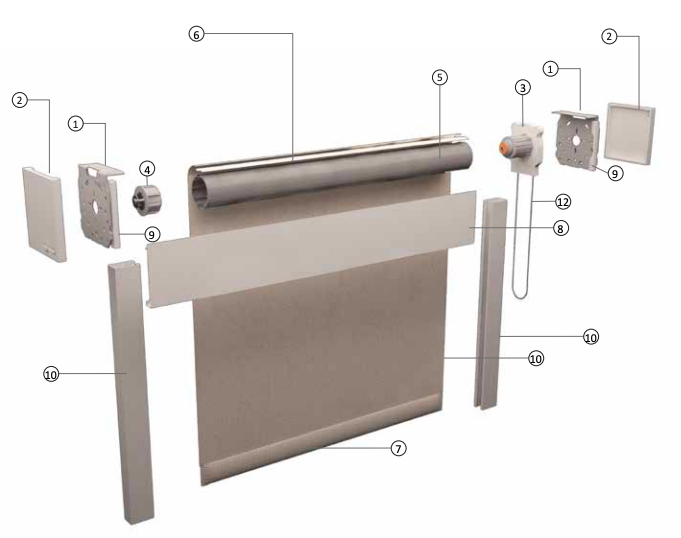

Roller system with guide wire

  • Room darkening or AV system
  • The zipper channel stabilizes the roller blind
  • Built in auto stop mechanism for upper and lower limit setting
  • Robust anti-deflection 47 mm diameter tube
  • Aesthetic end caps
  • Aesthetic aluminum fascia available as option
  • Face, top or wall fixing options
  • Additional weightening by steel profile is possible (Only with exposed bottom bar)

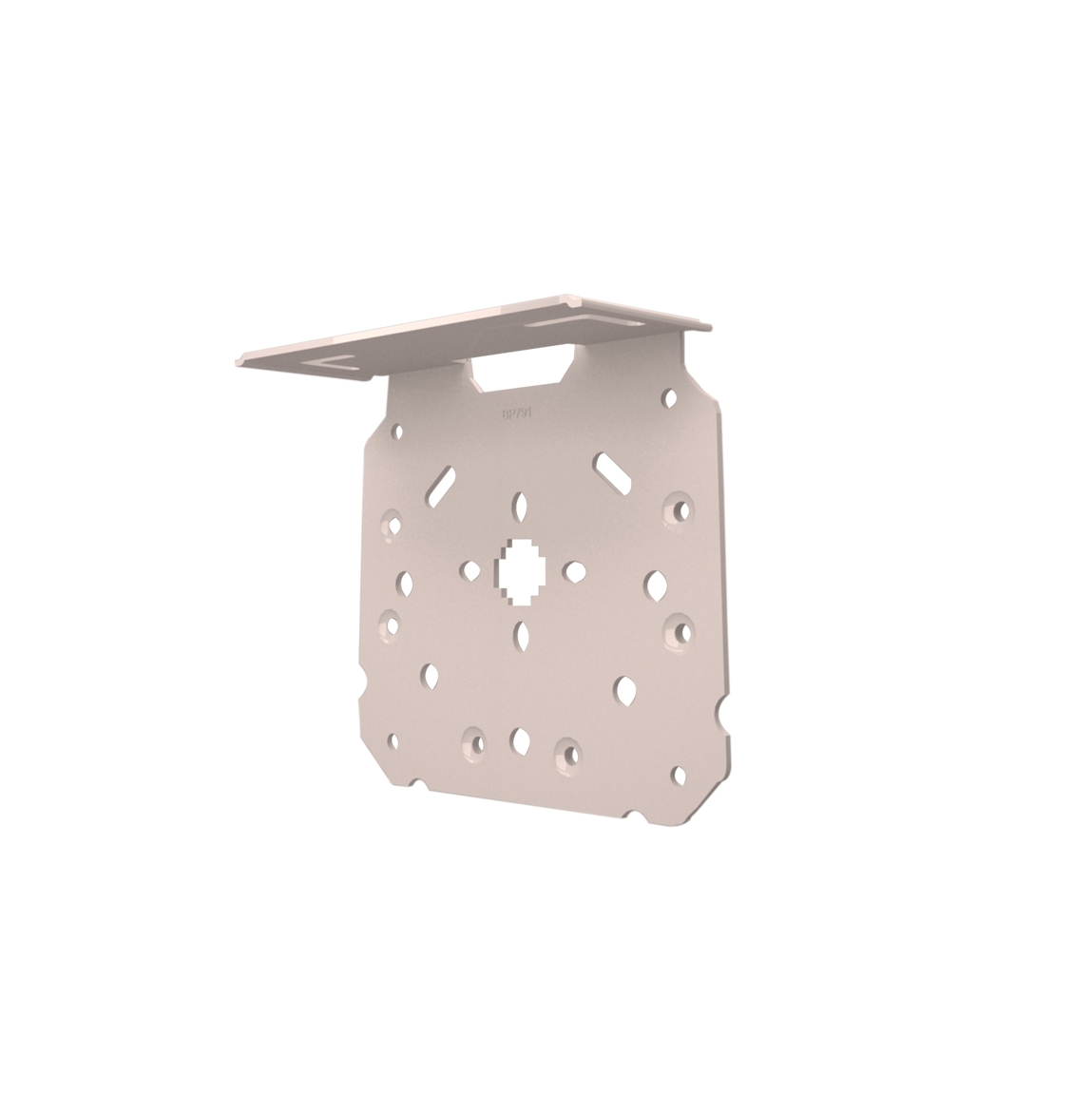

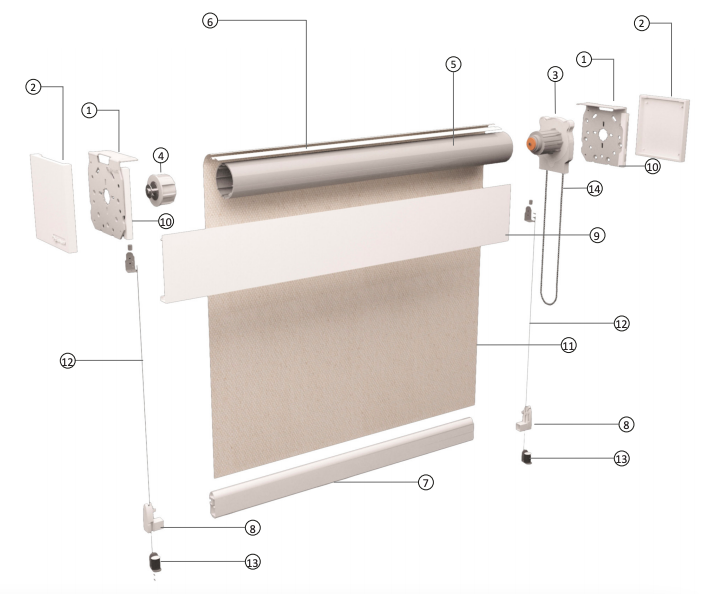

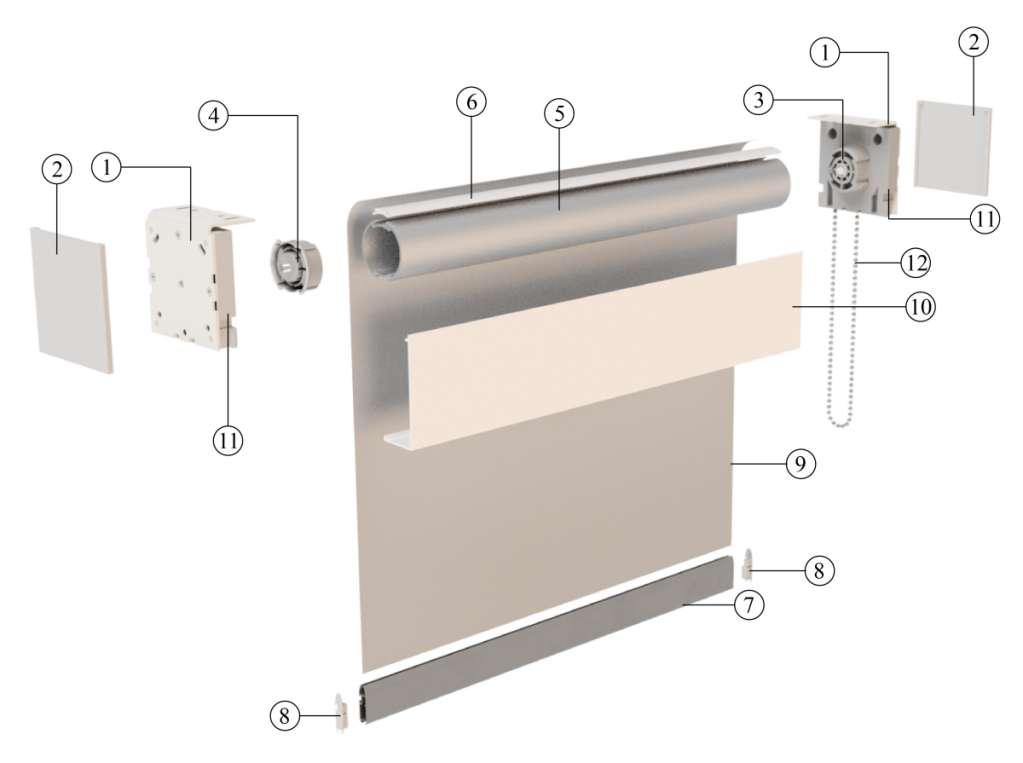

1. Mounting brackets
2. Bracket cover
3. Motor
4. End plug
5. Tube
6. Mounting Spline
7. Hem bar
8. End cap hem bar
9. Optional fascia
10. Fascia support
11. Fabric
12. Guide Wire
13. Holder guide wire
14. Shaft Adapter
15. Crown wheel
16. Motor Plate

Key Features

Cover and intermediate frames

Our Roller blinds come equipped with our standard Salire® Manual System

Our Roller Blinds are easily upgradable to Serena® Motorization System and be controlled with a variety of different control options.

Roller Blinds by Euro Systems® can also be integrated with most automation systems except non-proprietary systems

Sustainable
fabric collection

Automated window treatment options for solar tracking compliant with WELL standards

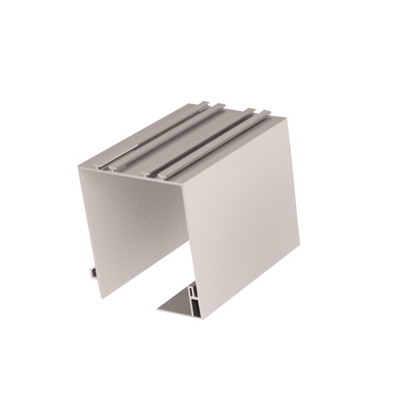

LED lighting in
pockets

Combination of privacy and
light control

Our Roller Blinds are safe in a child friendly environment.

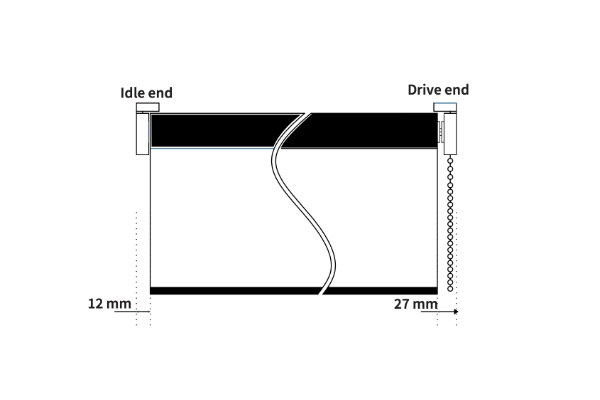

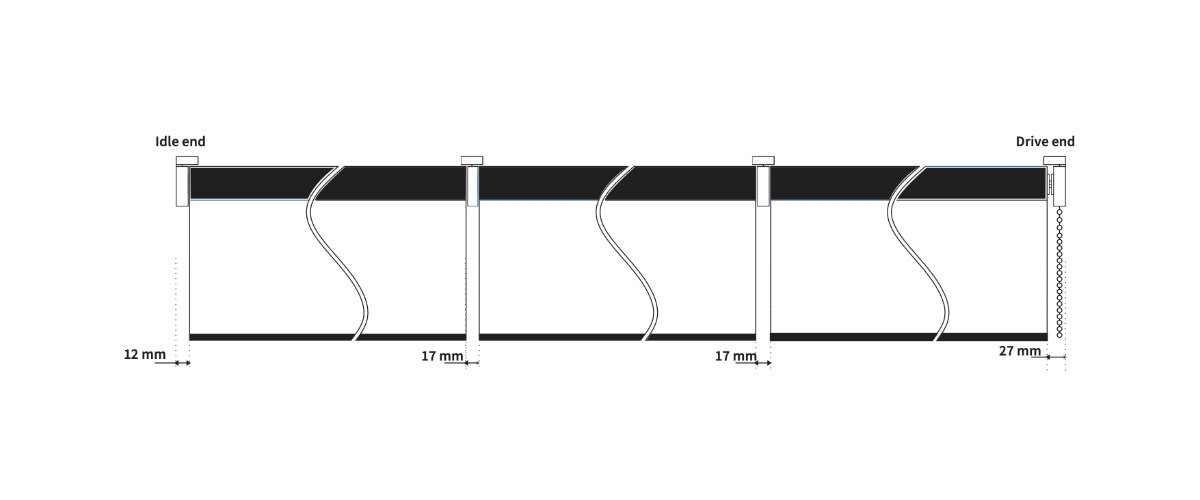

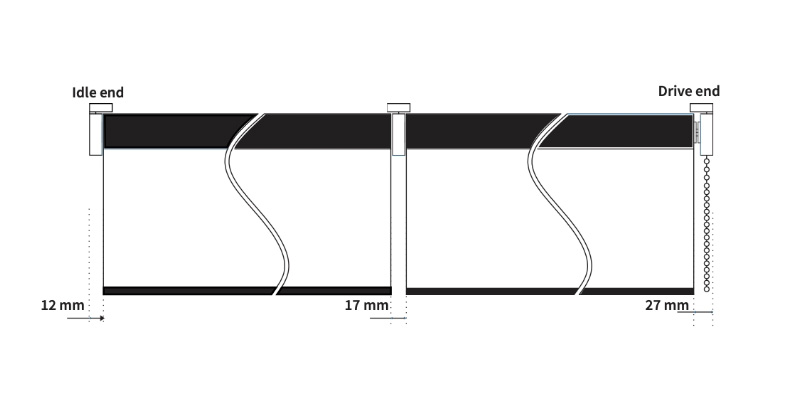

Salire® Edge Clearance

System Parameters: Fabric: Up to 0.7 mm in thicknessFabric Weight: Up to 600 g/mBottom bar: Up to 700 g/m

Accessories

Cover and intermediate frames

Work inquiries

Questions?
Get in touch.

United Kingdom
Euro Systems
info@eurosystems.co.uk
+44 (0) 190 260 7111

We use cookies to give you the best experience.
Qatar Salire® Serena®

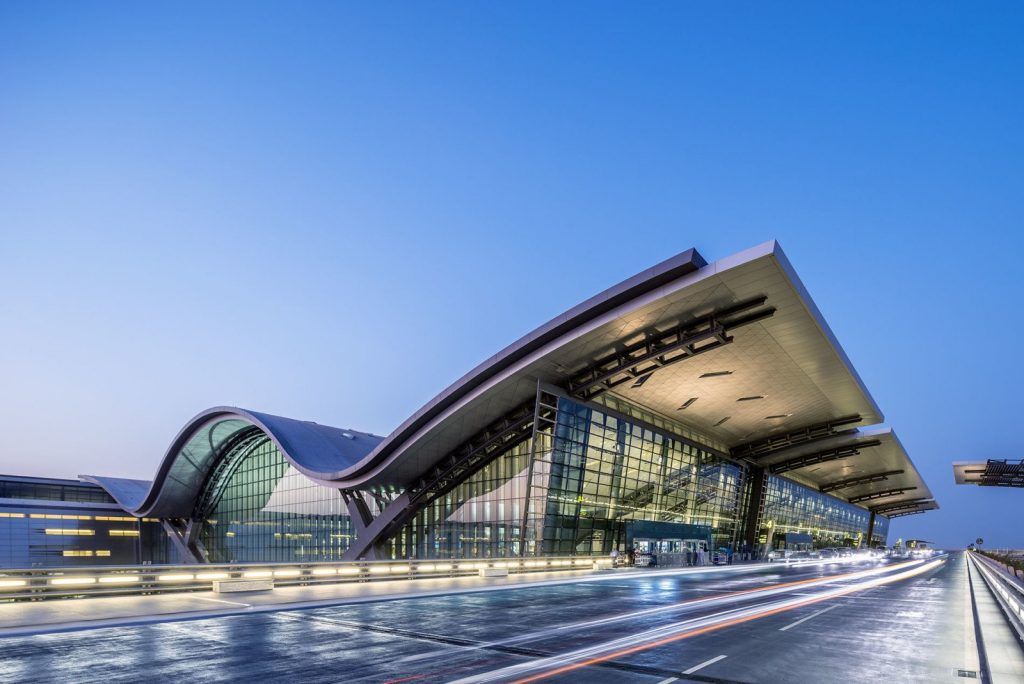

Hamad International Airport

  • Products:

    Motorized Roller Blinds and Manual Roller Blinds

  • Consultant:

  • Country:

    Qatar

View Project
Education Salire® UAE

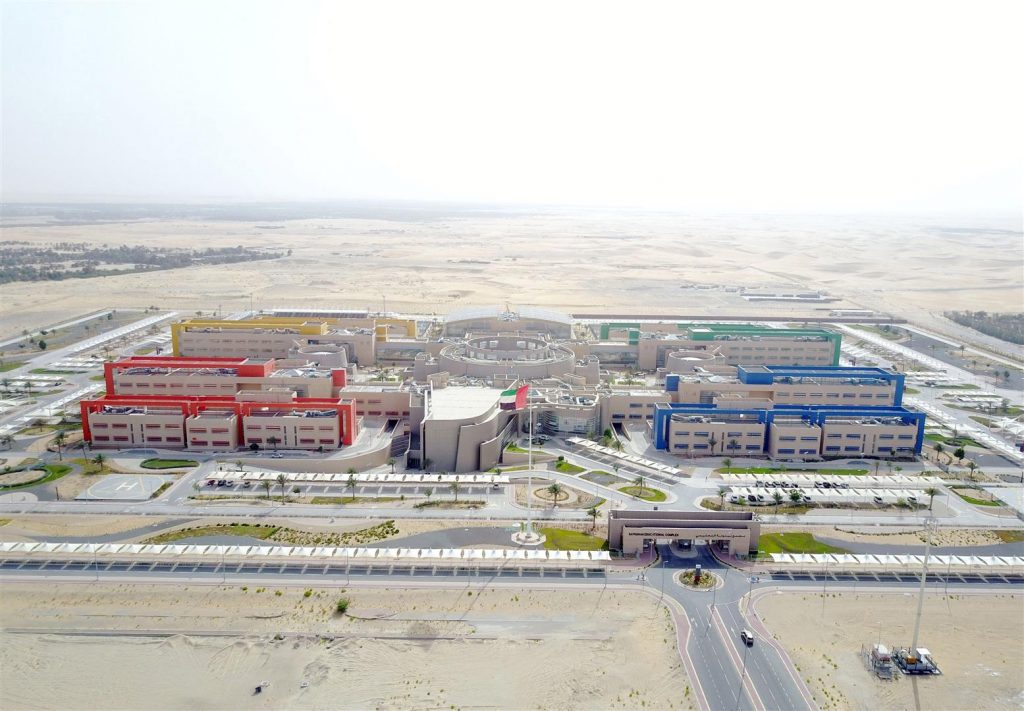

Baynunah Education Academy
